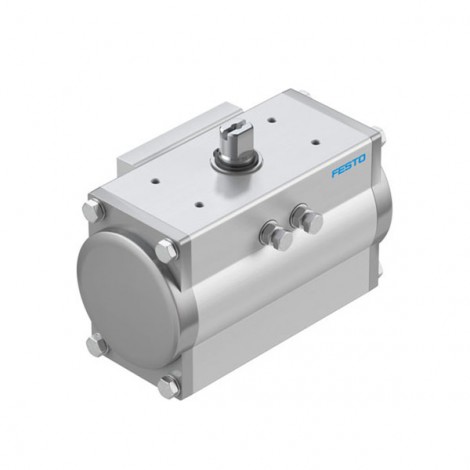

DFPD-40-RP-90-RD-F0507 Festo Double-acting 40Nm Valve Actuator

DFPD-40-RP-90-RD-F0507 Festo Double-acting 40Nm Valve Actuator

  • Product Code: DFPD-40-RP-90-RD-F0507
  • $314.84
Qty
Add to Wish List
Compare this Product
  • Description

Festo DFPD-40-RP-90-RD-F0507 Double-acting rack and pinion valve actuator.

Quarter turn actuator with NAMUR port pattern VDI/VDE 3845 for mounting of solenoid valves and position sensors.

Festo part number: 8047615

Torque at 5.5 bar: 38.3 Nm

ISO Pad Size: F0507

Shaft Connection: 14mm Square

Pneumatic Connection: G1/8

Swivel Angle: 90 degrees

Closing Direction: Right closing

Operating Pressure: 2 ... 8 Bar

Ambient Temperature: -20 ... 80 °C
