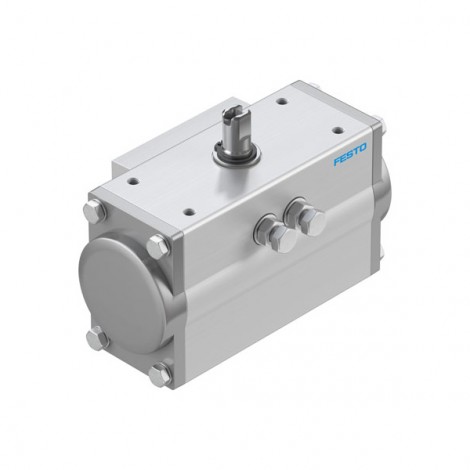

DFPD-10-RP-90-RD-F03 Festo Double-acting 10Nm Valve Actuator

DFPD-10-RP-90-RD-F03 Festo Double-acting 10Nm Valve Actuator

  • Product Code: DFPD-10-RP-90-RD-F03
  • $197.46
Qty
Add to Wish List
Compare this Product
  • Description

Festo DFPD-10-RP-90-RD-F03 Double-acting rack and pinion valve actuator.

Quarter turn actuator with NAMUR port pattern VDI/VDE 3845 for mounting of solenoid valves and position sensors.

Festo part number: 8047613

Torque at 5.5 bar: 10.3 Nm

ISO Pad Size: F03

Shaft Connection: 9mm Square

Pneumatic Connection: G1/8

Swivel Angle: 90 degrees

Closing Direction: Right closing

Operating Pressure: 2 ... 8 Bar

Ambient Temperature: -20 ... 80 °C
